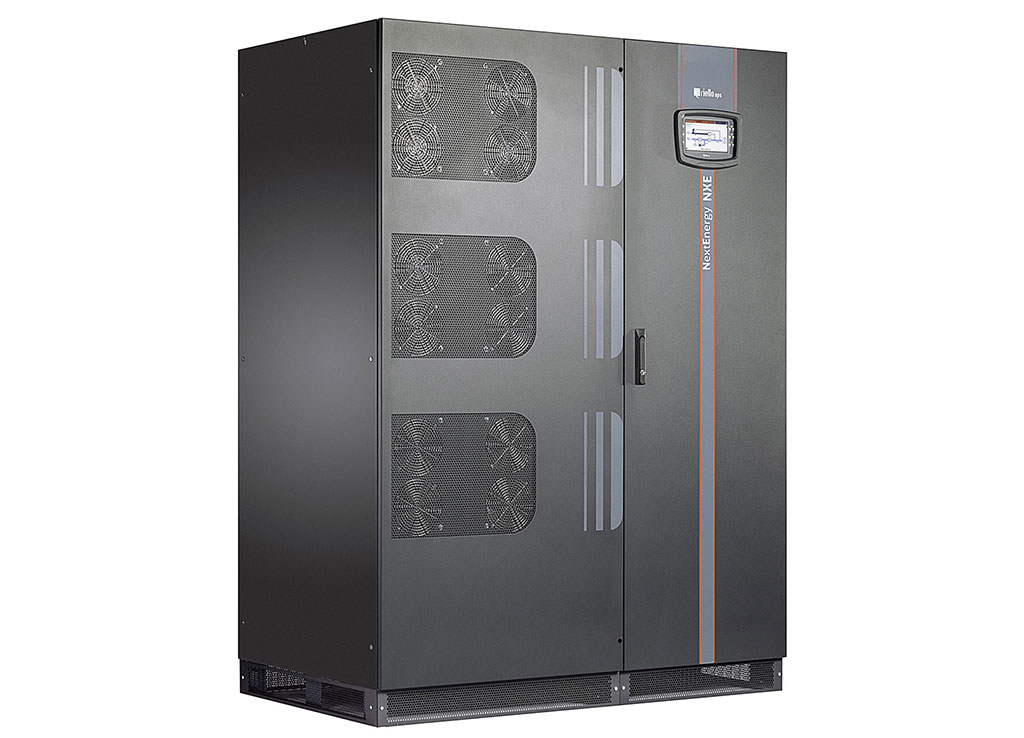

NextEnergy NXE
  • NextEnergy NXE
Teljesítmény tartomány: 250 - 400 kVA
3:3

JELLEMZŐK

• Magas hatásfok 97% kettős konverziós módban
• kW = kVA (pf 1) 40°C-ig
• Transzformátor nélküli UPS
• Magas túlterhelhetősg
• Interaktív Érintőképernyő
• Teljes hozzáférés elölről

Riello UPS bemutatja a NextEnergy-t, a kritikus alkalmazásokra kialakított legújabb UPS sorozatot.  Az innovatív, transzformátor nélküli, háromfázisú, VFI-SS-111 kettős konverziós technológiájú berendezések, a jövő energia ellátási igényeihez készültek

​IGBT egyenirányítót, 3 szintű IGBT invertert és további korszerű technológiájú berendezések gondosan kiválasztott kiváló minőségű komponensekből készülnek, amely által a NextEnergy család kategóriája élén jár. Kimeneti fázistényezője 1 (kVA=kW), ideális megoldássá teszik, a kritikus alkalmazások védelmére. Az ECS (Efficiency Control System) rendszernek köszönhetően a NextEnergy a legmagasabb szintű hatékonyságot biztosítja még részterhelés esetén is.

Információ kérés »

Next Energy is the latest UPS series designed for mission critical applications. The three phase UPS offers transformerfree double conversion technology VFI SS 111, with integrated the latest IGBT three-level design.

Next Energy is designed to meet the power requirements of tomorrow, offering the highest efficiency in the market and low running cost. Thanks to the Efficiency Control System (ECS) Next Energy also guarantees the highest levels of efficiency even at partial loads.
Its unity power factor and easy system upgrading make it the ideal solution for the business continuity of any IT application.

Outstanding performances
• The state of the art  technology of the Next Energy series and the careful selection of high-quality and high reliability components help to achieve first-class performance such as unity power factor (kW=kVA) and the capability to supply capacitive loads, which are very common in most Data Centres, without any power derating up to 40 °C.
• Outstanding system efficiency up to 97% in ON-Line double conversion mode, increasing to 99% in Eco Mode or Smart Active Mode.
• The UPS design adopts a forced ventilation method to extract the heat produced by the internal components.  Specific attention has been given to ensure the best operational level and lifetime. This is thanks to the automatic fan speed control which constantly adjusts to the specific load level, the fan failure alarm and the fan redundancy.
• Active ECO: in this operation mode, the bypass supply the active power while the inverter provides the reactive part of the load. This ensures the maximum level of efficiency (lower operating cost) and meanwhile a UPS input power factor close to unity, regardless of the load power factor. In addition, the inverter operation significantly reduces the harmonic content (THDi) applied to the mains supply. NextEnergy, in Active ECO mode, overcome the need for expensive power-factor-correction-systems and reduce the energy costs.

Battery care system
The battery is one of the most important parts of the UPS that ensures energy and therefore the correct operation in case of mains failure. Next Energy includes all the latest features to extend the battery life and keep the battery working efficiently, as well as advising users about any potential problems.
The variety of charging methods and the smart control system allows the use of the most common type of battery and technologies available on the market such as VLRA, AGM, GEL, NiCd as well as lithium Ion batteries, supercaps and flywheels.

Operation without Neutral
NextEnergy
can work with or without the neutral line (N). This is an important feature to reduce the TCO related to the distribution system, when the neutral line is created by an isolation transformer close to the load: for example, in the modern Data Centre, or where the neutral is not used at all. This allows reduced cost of the distribution arrangements.

Könnyű telepítés

A NextEnergy kis területet és rugalmas telepítést garantál:

  • A szekrény kis alapterülete és a teljes hozzáférés elölről a karbantartási tevékenységekhez tág teret biztosít a telepítéshez és karbantartáshoz.
  • A NextEnergy berendezésen alapkivitelben alul-felül kábelbemenet van elhelyezve, így nem szükséges a nagy és költséges felső bemenetű szekrény.
  •  A szellőzés elölről felfelé irányul, így nem szükséges hátul helyet hagyni.

Maximum reliability and availability
NextEnergy UPS can be connected in parallel up to 8 units to increase the capacity or add redundancy (N+1).

Considering that a typical load can vary from 20 to 80%, the Efficiency Control System (ECS) function optimizes the operating efficiency of the entire system according to the power absorbed by the load. This ensures higher overall efficiency during all load conditions. Hot System Expansion (HSE) allows the addition of further UPS into an existing system, without the need to switch off the operational units or transfer them to bypass mode. This guarantees maximum load protection, even during maintenance and system expansion.

It ensures maximum levels of availability - even in the event of an interruption to the parallel control cable the system is “FAULT TOLERANT”. It is not affected by connection cable faults and continues powering the load without disruption, signaling an alarm condition.

Advanced Communication
INTERACTIVE TOUCH SCREEN
NextEnergy is equipped with a Touch screen 7” graphic color LCD display providing all the information on the UPS, measurements, voltage and current waveforms, operating states and alarms in many different languages.
The panel is used for the configuration and setting the parameters of the UPS with 3 levels of the security password based on the authorization level ensuring “actions based on skills/responsaility” policy.
